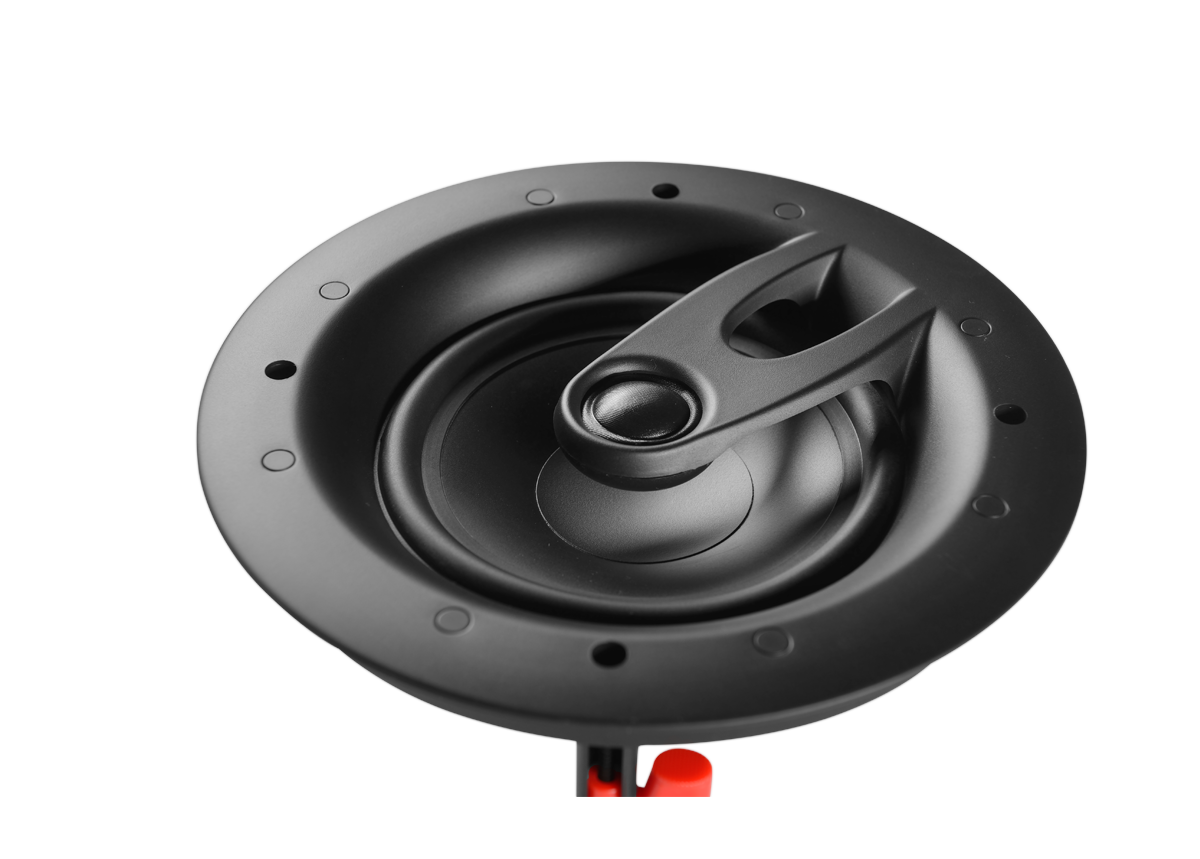

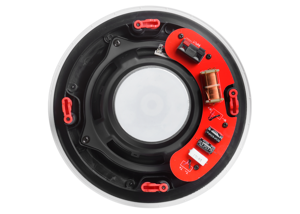

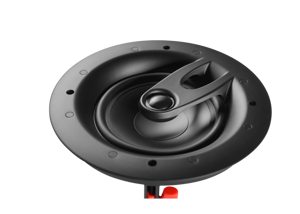

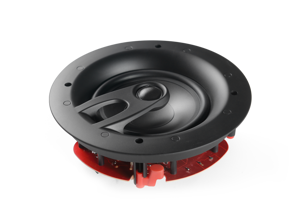

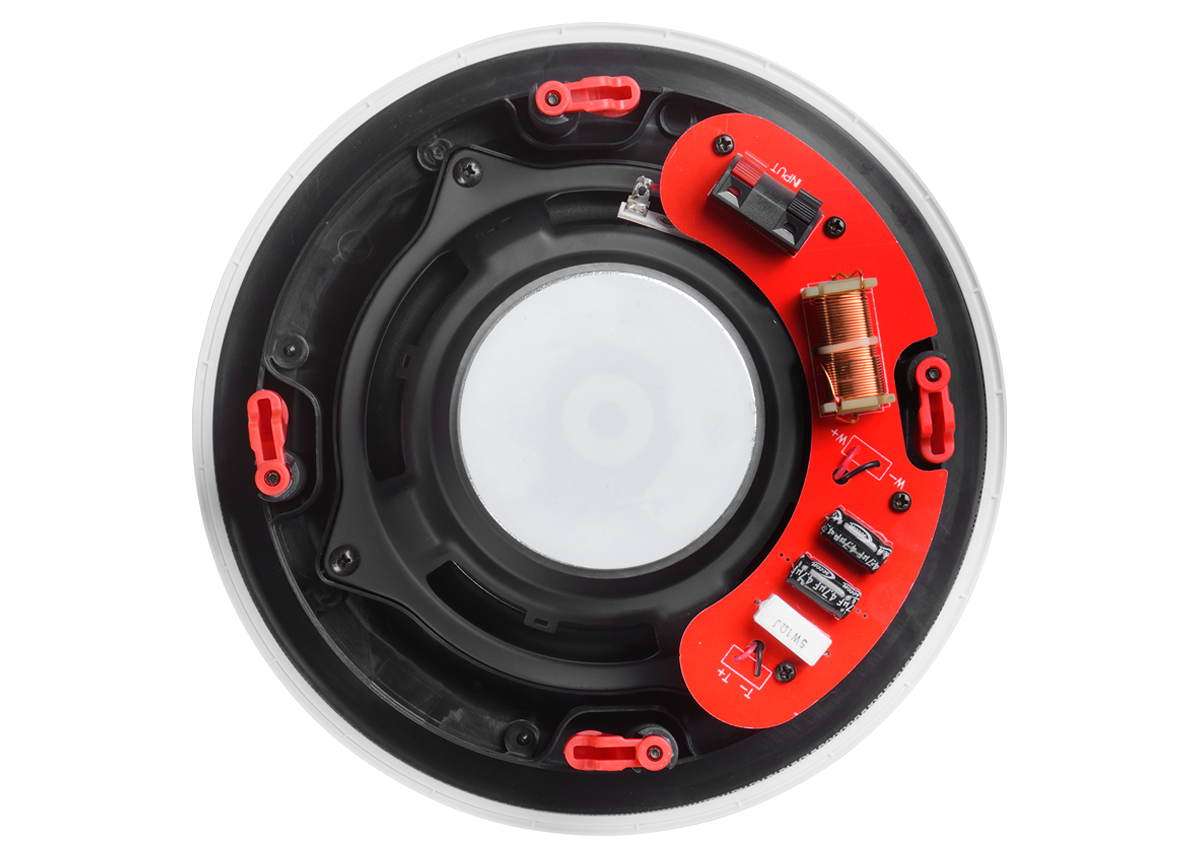

NC62/NC82

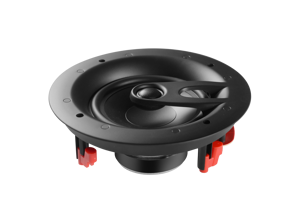

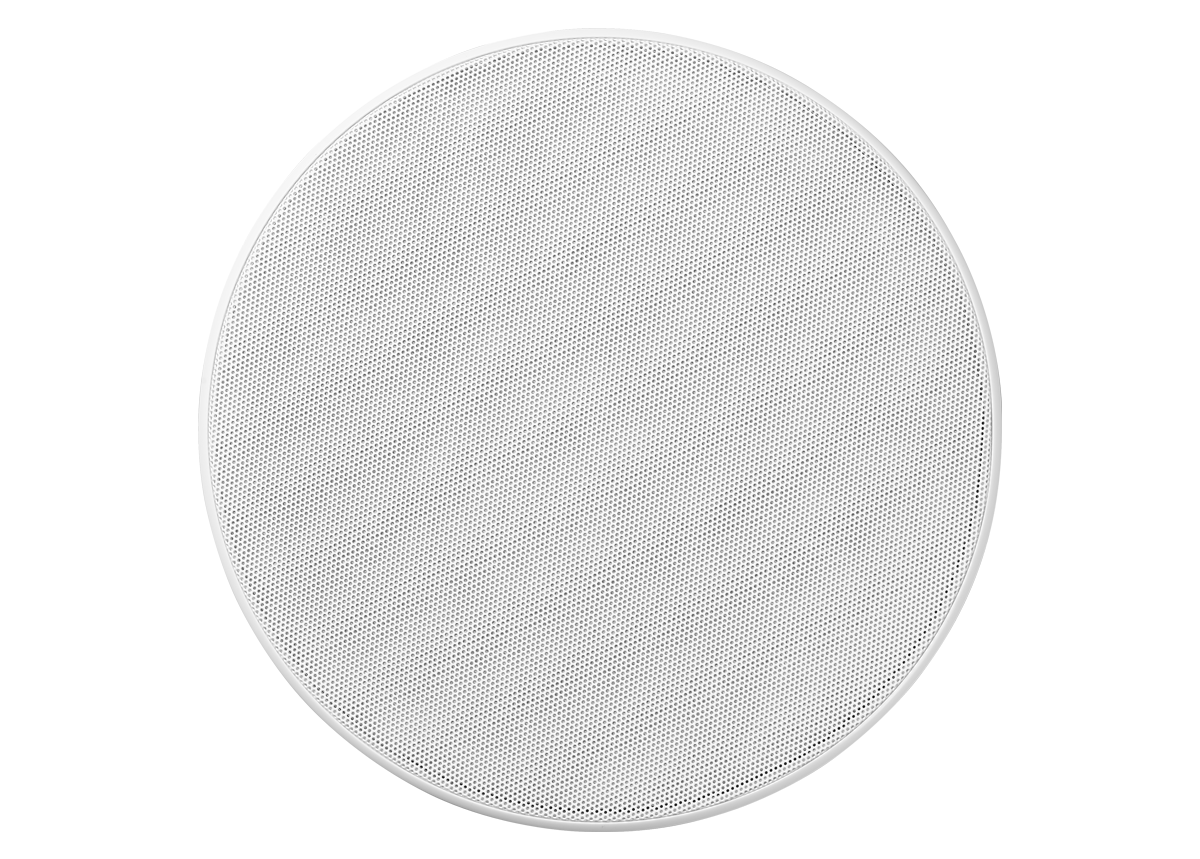

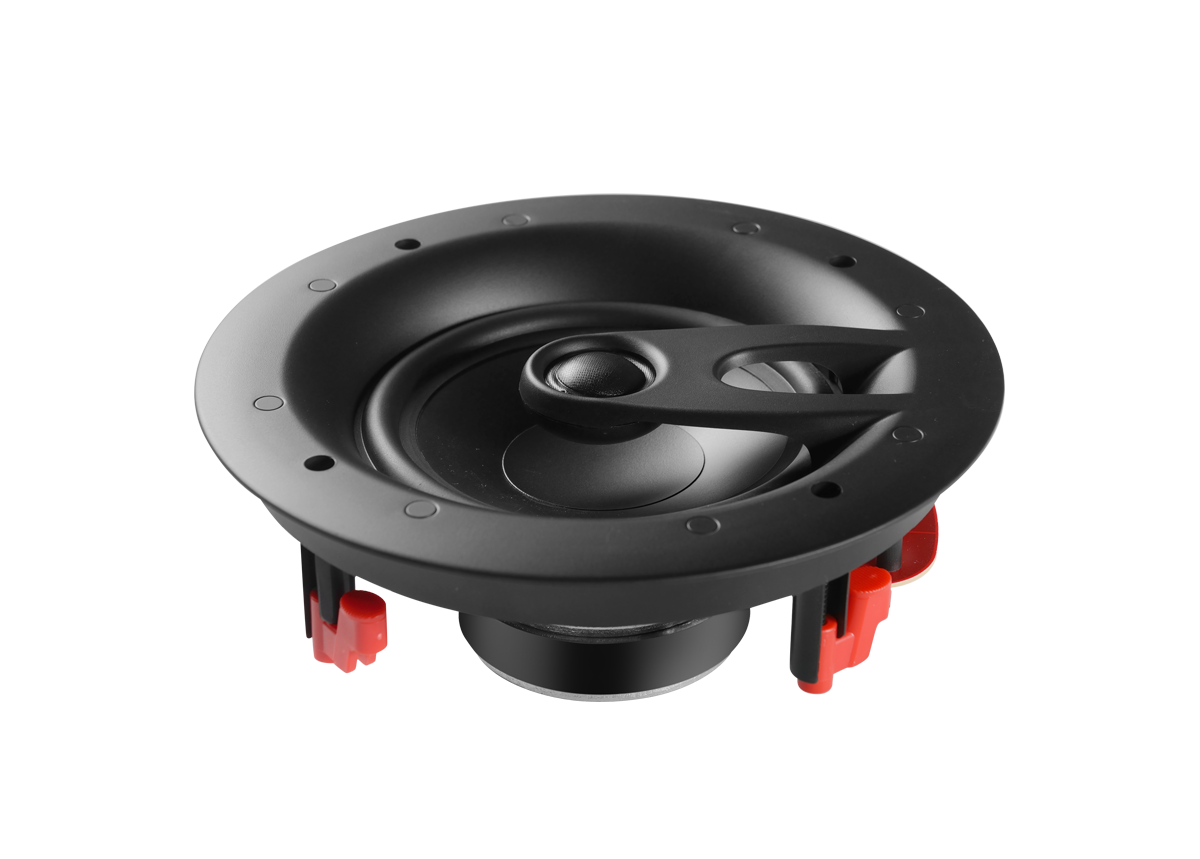

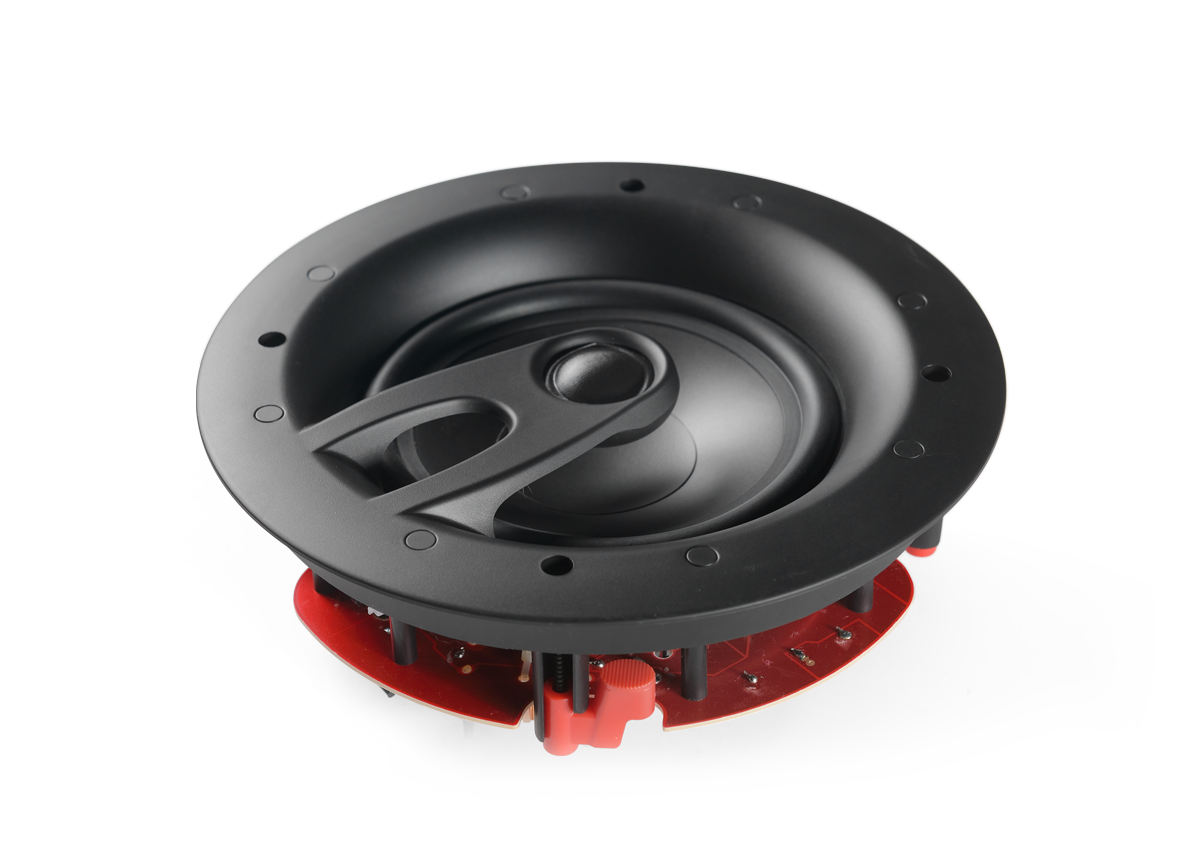

This series features a modern design enhanced by a paintable qrille which covers all the frame using permanent maqnet NdFeB. This microtrim design allows the speaker to be practically hidden in the ceiling.
MODERN DESIGN
GREAT PERFORMANCE

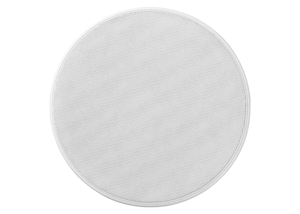

MAGNETIC GRILLE
Technical Parameter
| Model | NC62 | NC82 |
| Woofer | 6-1/2" polypropylene or kevlar | 8" polypropylene or kevlar |

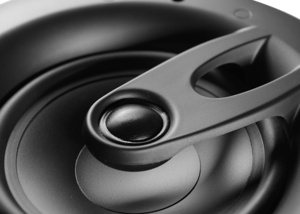

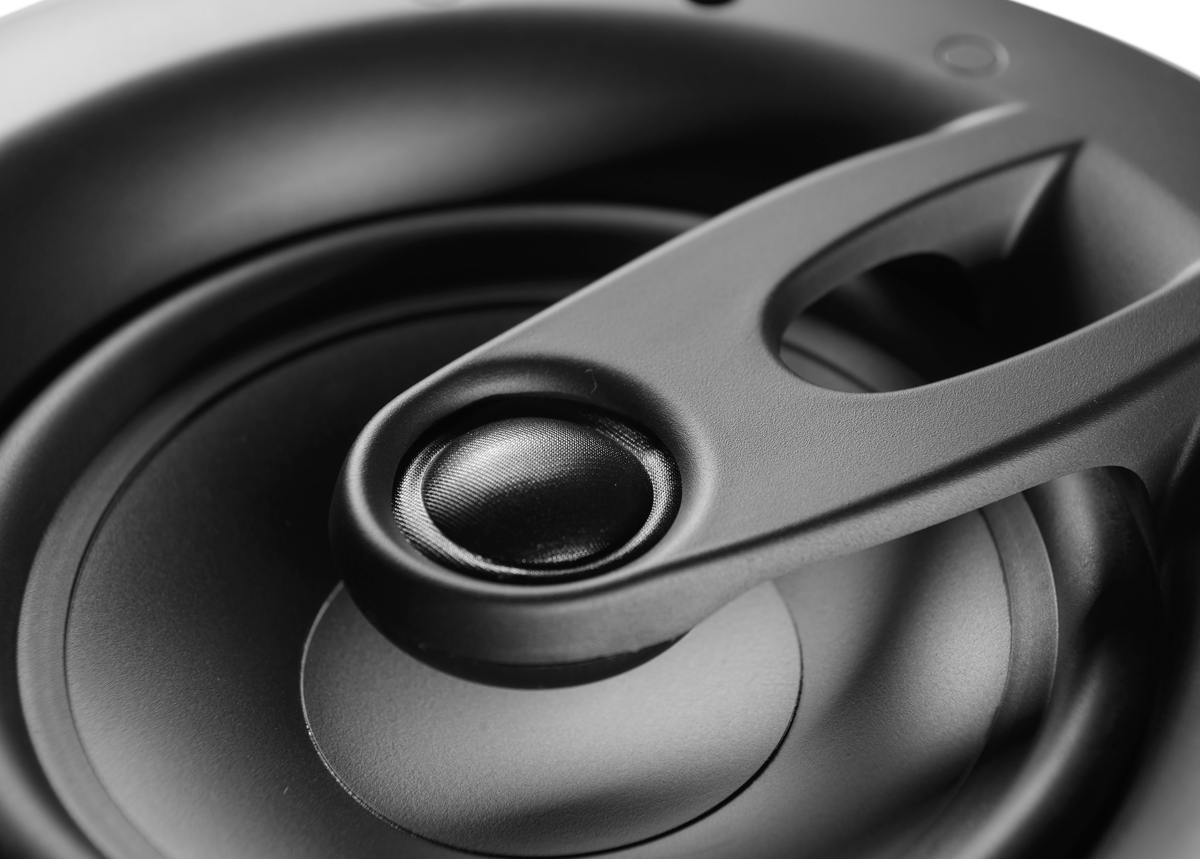

| Tweeter | 1" ferrofluid cooled silk dome | 1" ferrofluid cooled silk dome |
| Power handling | 120Watts | 150Watts |
| Frequency response | 45-20,000Hz | 30-20,000Hz |
| Sensitivity | 89dB@1W/1M | 89dB@1W/1M |
| Impedance | 8 Ohms | 8 Ohms |
| Dimension(DiaxD) | 235x92mm/9-1/4"x3-5/8" | 278x89mm/11"x3-7/8" |
| Cutout size(Dia) | 209mm/8-1/4" | 252mm/10" |
| Mounting depth | 90mm/3-1/2" | 95mm/3-3/4" |
