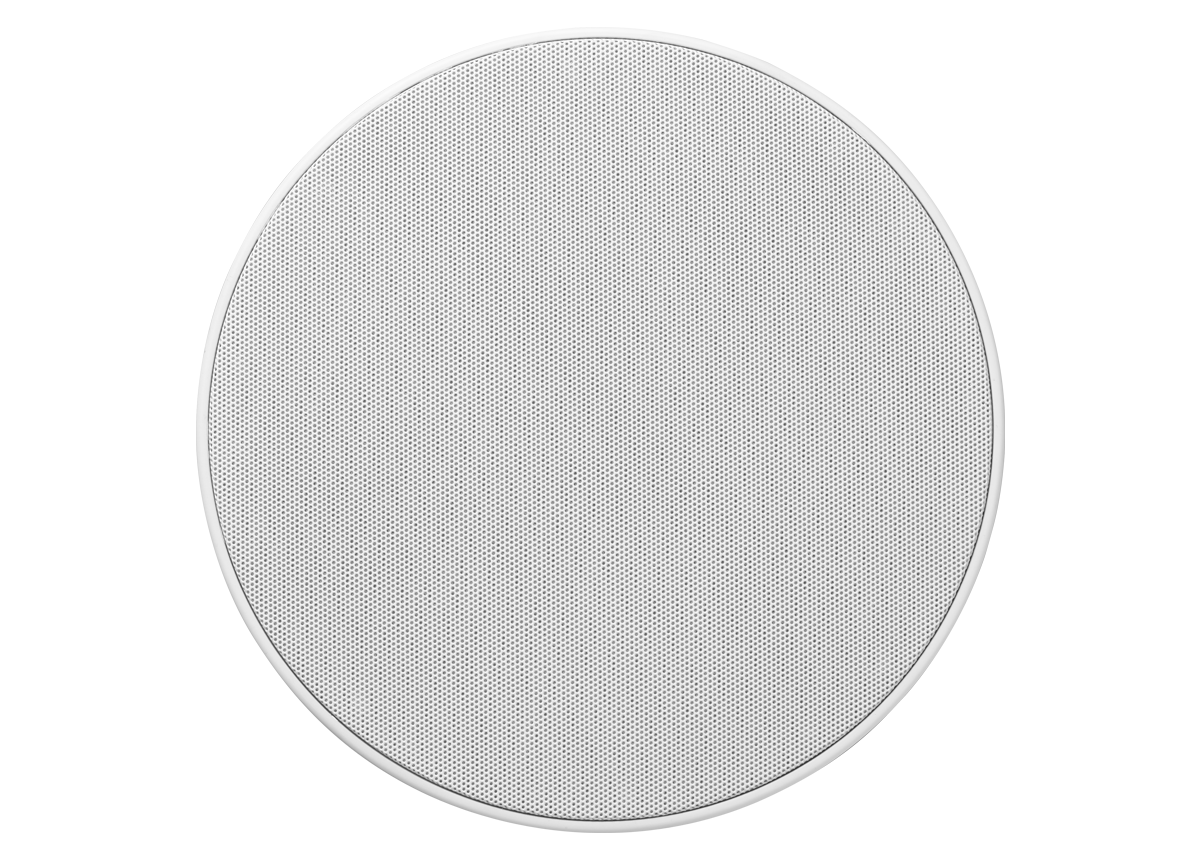

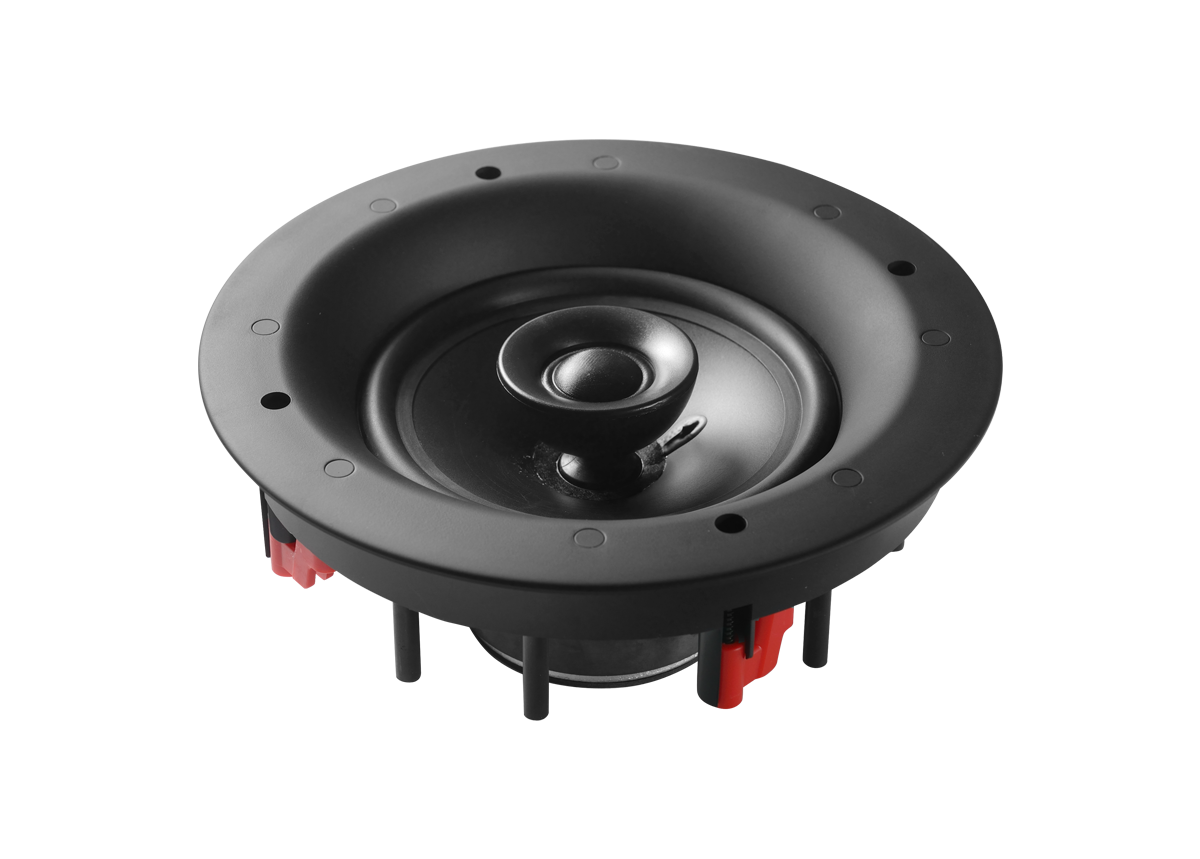

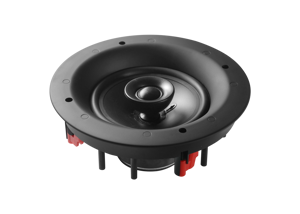

Incorporating the micro-trim grille design and a new coaxially mounted silk dome tweeter,the speaker packs great performance into an affordable package. The pivoting tweeter allows listeners to point the sound directly to the main listening area, reducing reflected sounds that blur sonic details.
Technical Parameter
Model | NS62 | NS82 |
Woofer | 6-1/2" polypropylene or kevlar | 8" polypropylene or kevlar |
Tweeter | 1" ferrofluid cooled silk dome | 1" ferrofluid cooled silk dome |
Power handling | 120Watts | 150Watts |
Frequency response | 45-20,000Hz | 30-20,000Hz |
Sensitivity | 89dB@1W/1M | 89dB@1W/1M |
Impedance | 8 Ohms | 8 Ohms |
Line voltage | 70/100V | 70/100V |
Dimension(DiaxD) | 235x98mm/9-1/4"x3-7/8" | 278x100mm/11"x4 |
Cutout size(Dia) | 209mm/8-1/4" | 252mm/10" |
Mounting depth | 95mm/3-3/4" | 97mm/3-13/16" |
