ND42/ND52/ND62

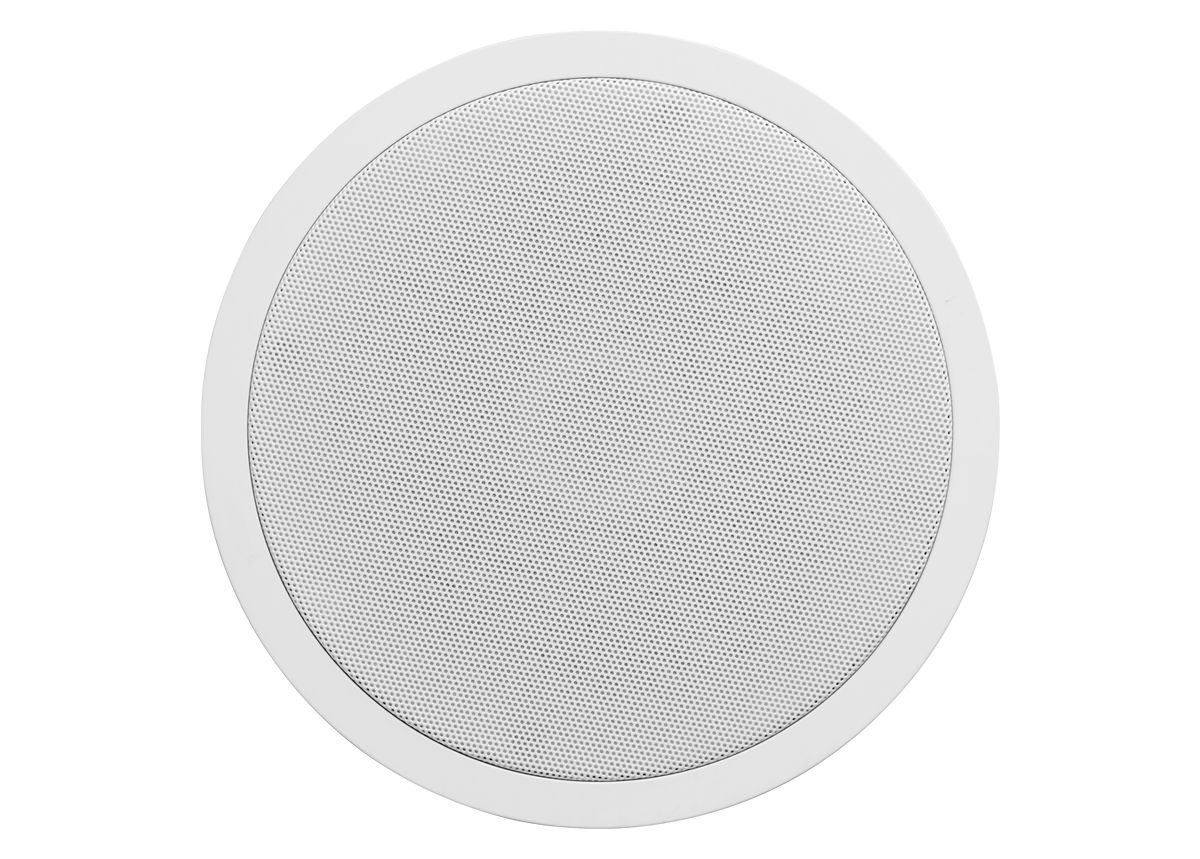

Designed for home background music system, ND series ceiling speakers creatively incorporate frameless magnetic qrille and traditional magnetic grile, combined with numerous other enhancements, delivers clear sonic advantages.

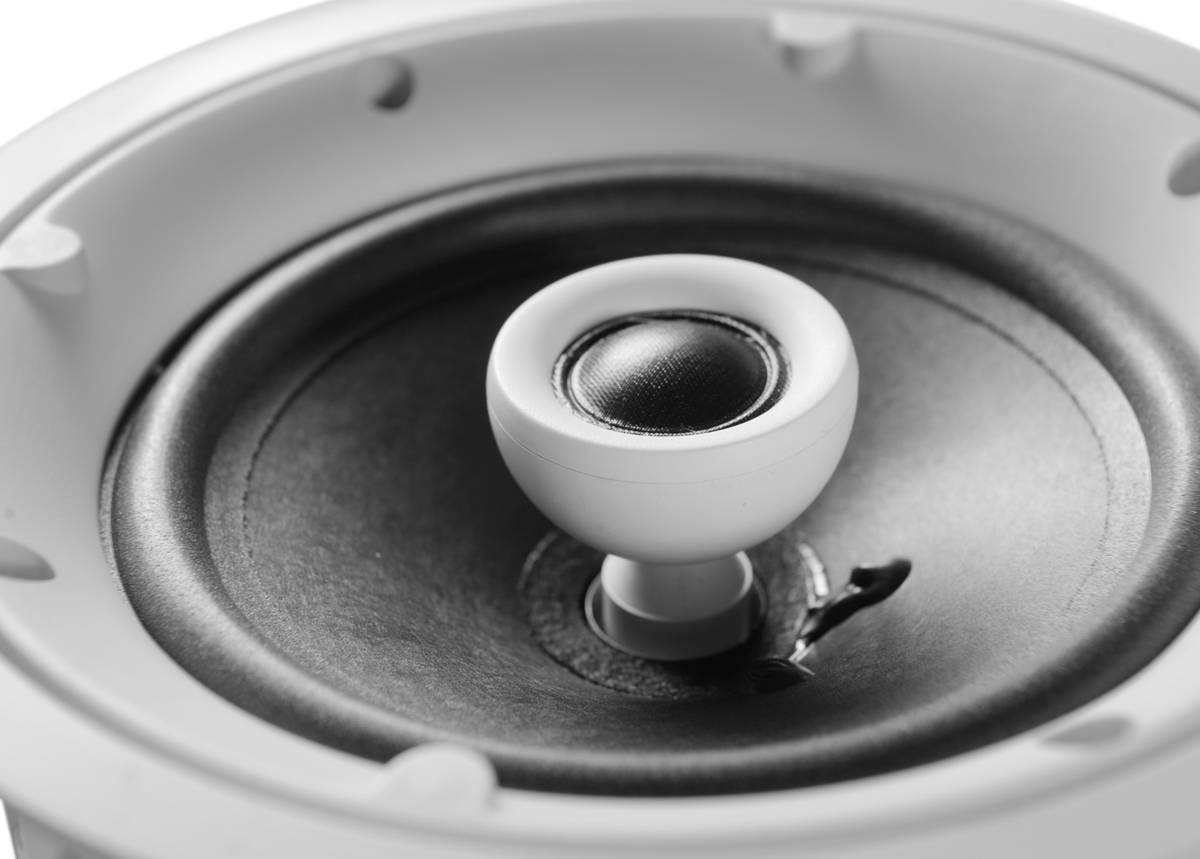

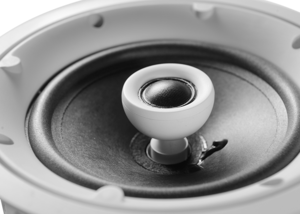

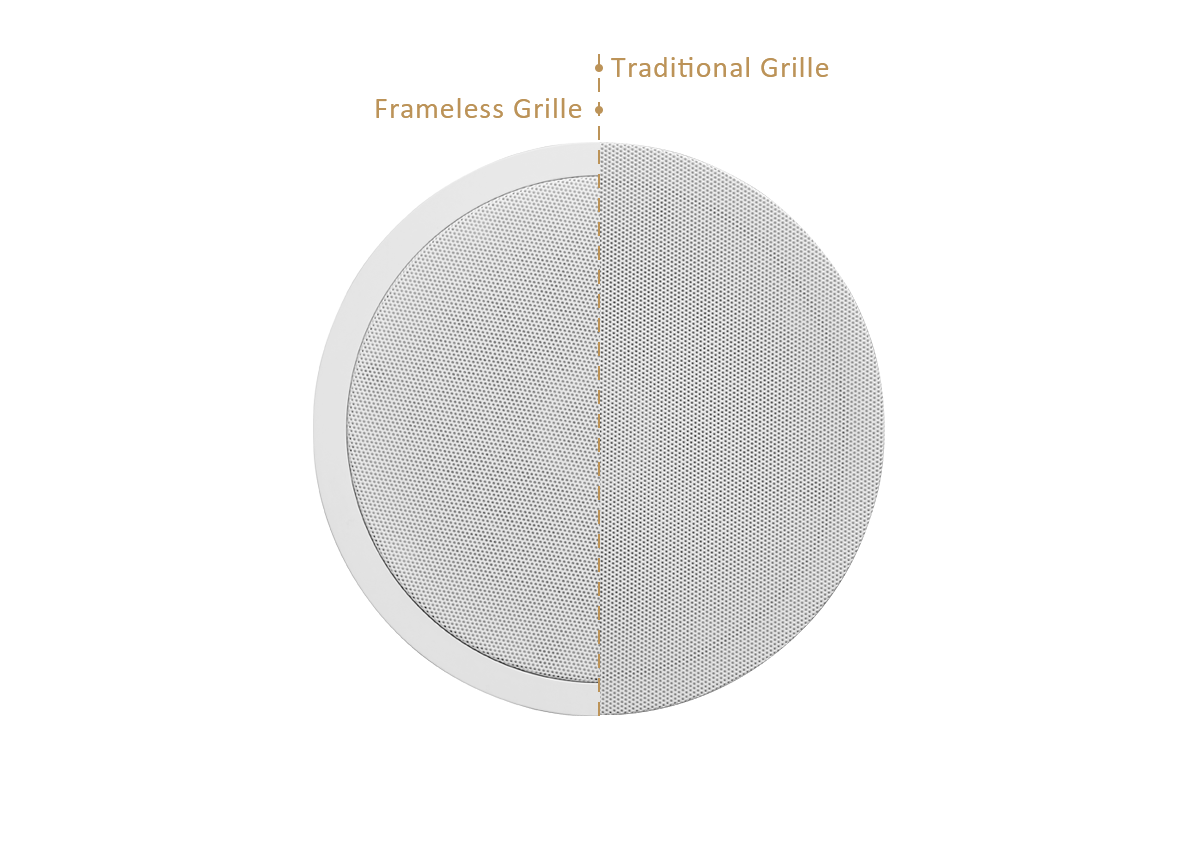

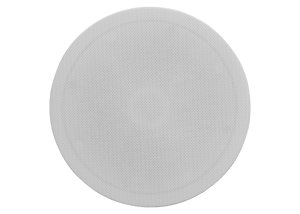

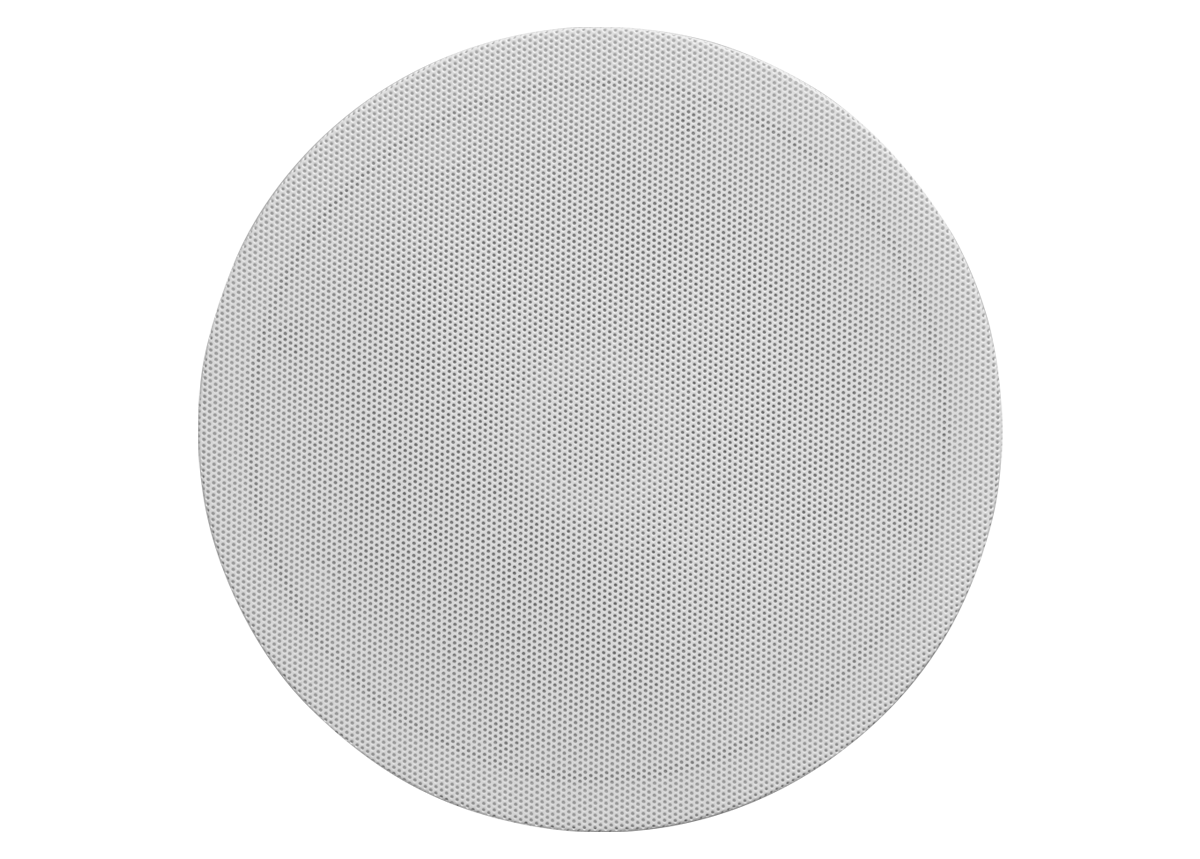

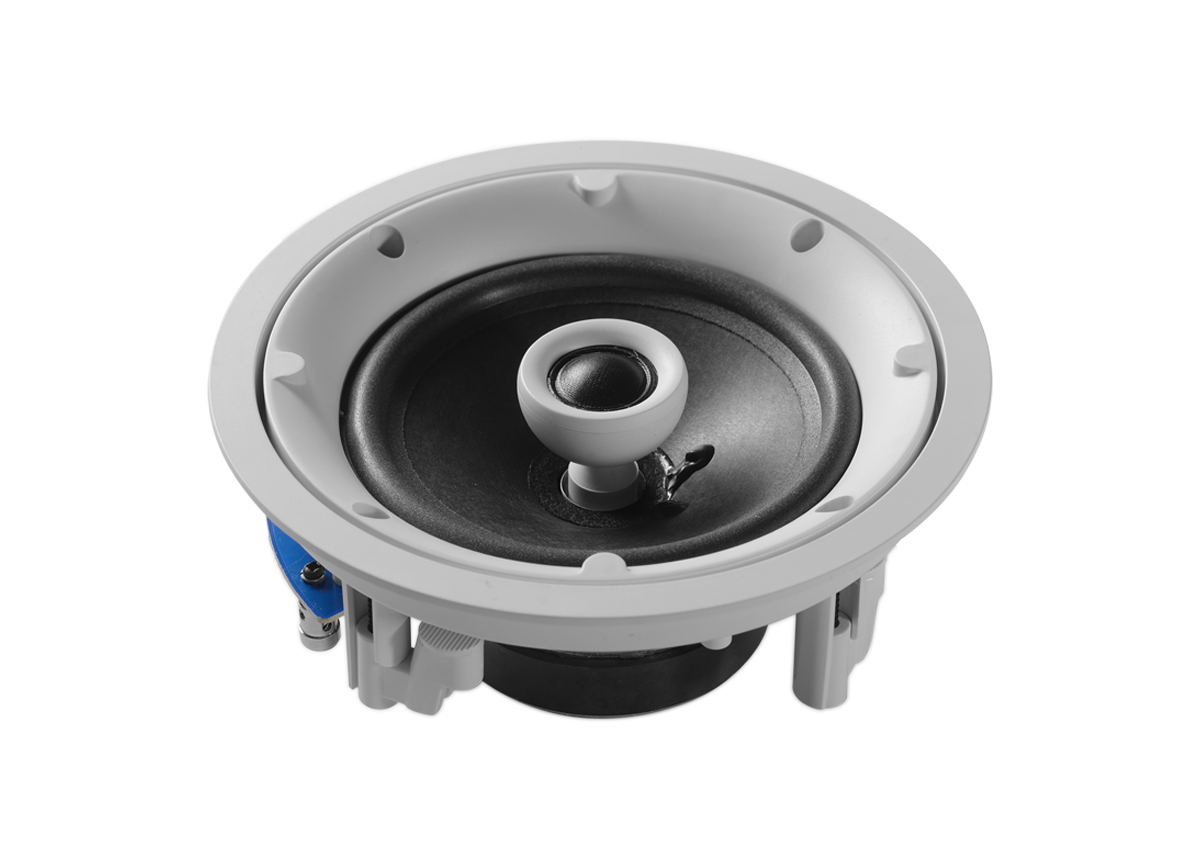

       COAXIAL                  HIGH SENSITIVITY                  FRAMELESS OR TRADITIONAL GRILLE



Technical Parameter

ModelND42ND52ND62
Woofer4" polypropylene or kevlar5-1/4" polypropylene or kevlar6-1/2" polypropylene or kevlar
Tweeter3/4" ferrofluid cooled silk dome3/4" ferrofluid cooled silk dome1" ferrofluid cooled silk dome
Power handling30Watts40Watts60Watts
Frequency response60-20,000Hz50-20,000Hz60-20,000Hz
Sensitivity90dB@1W/1M90dB@1W/1M90dB@1W/1M
Impedance8 Ohms8 Ohms8 Ohms
Line voltage70/100V70/100V70/100V
Dimension(DiaxD)156x73mm/6-1/8"x2-7/8"
171x79mm/6-3/4"x3-1/8"213x87mm/8"x3-7/16"
Cutout size(Dia)141mm/5-1/2"160mm/6-1/4"195mm/7-11/16"
Mounting depth71mm/2-13/16"77mm/3"85mm/3-3/8"
