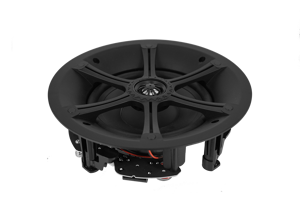

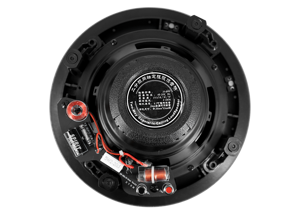

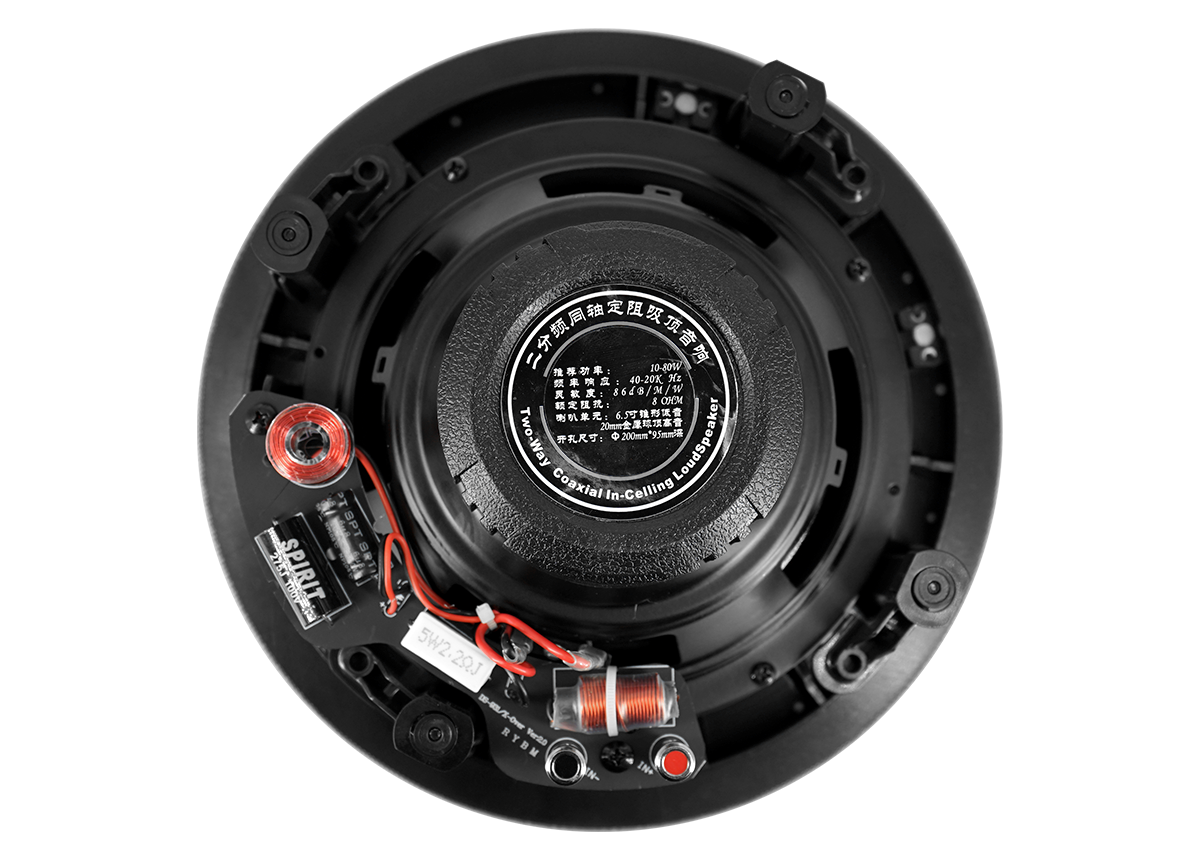

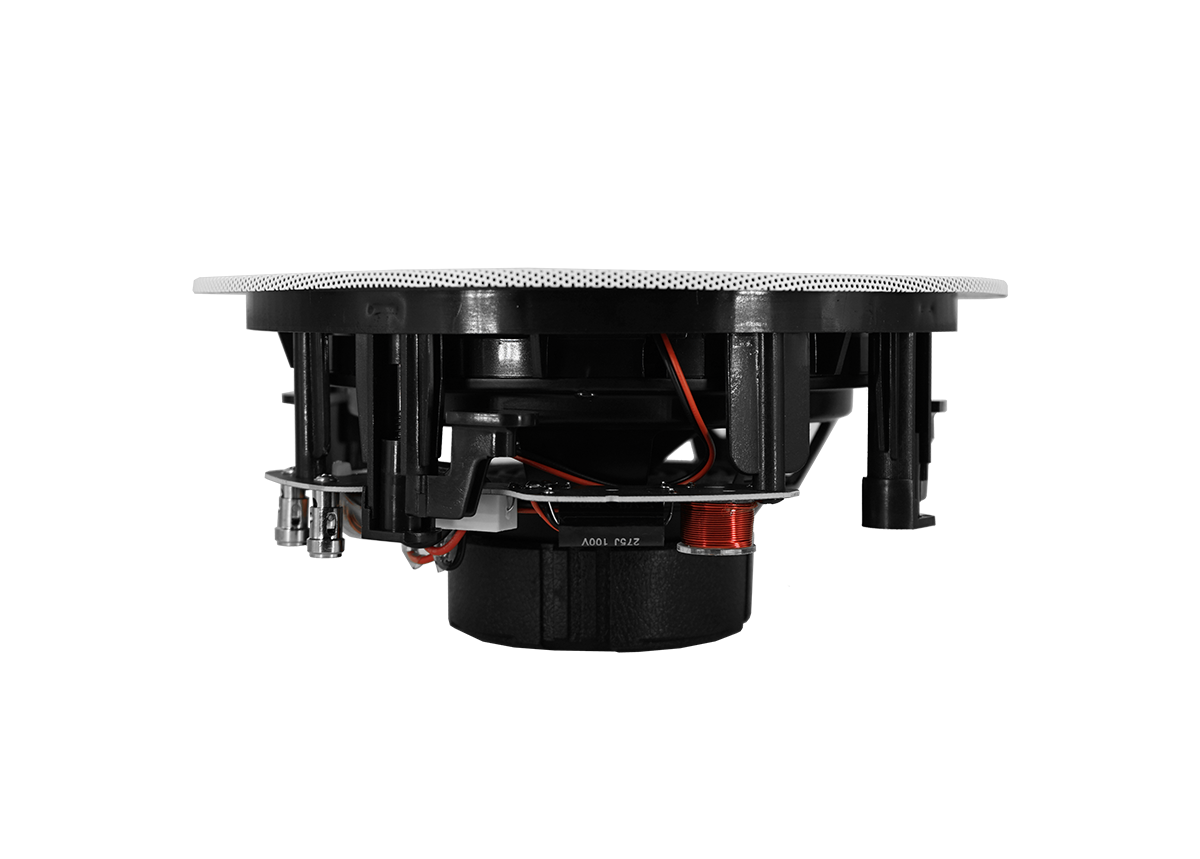

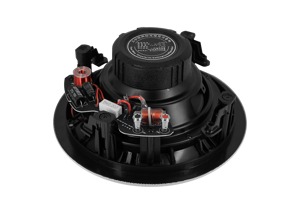

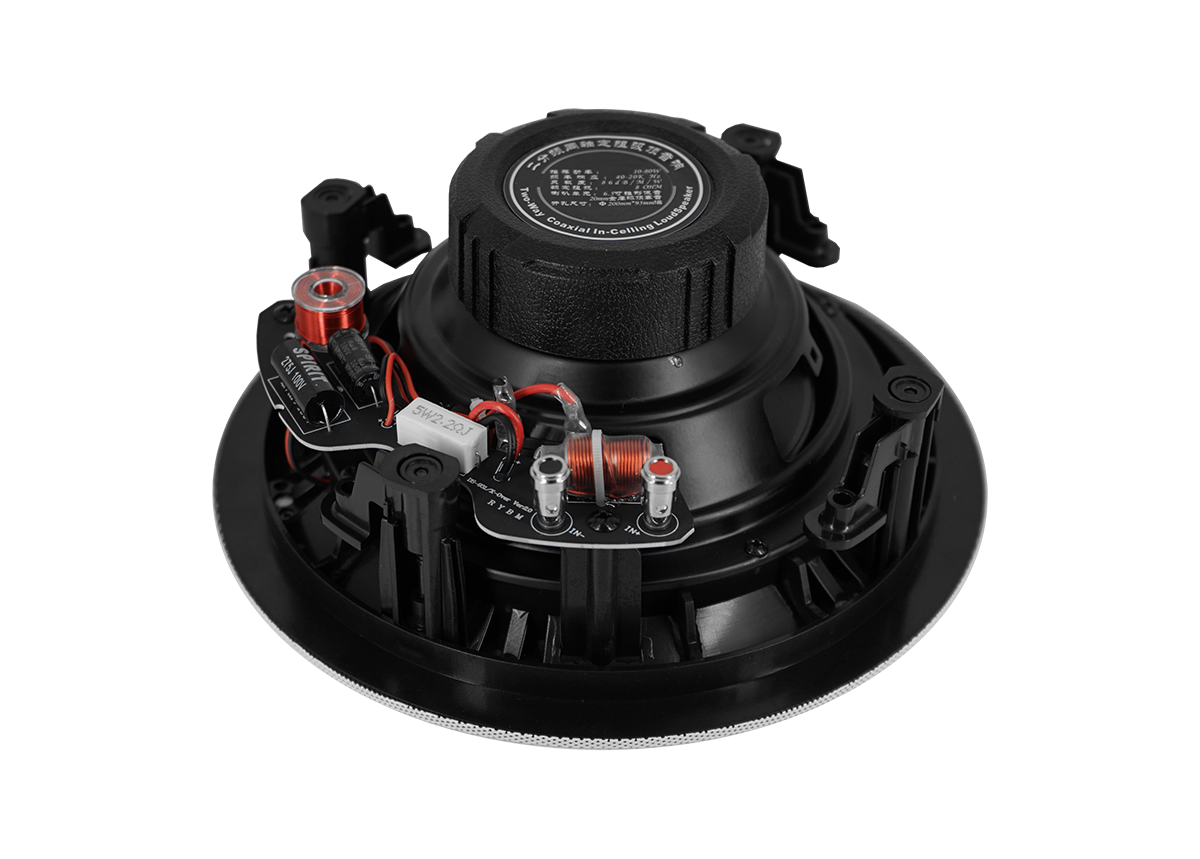

NL52/NL62/NL82

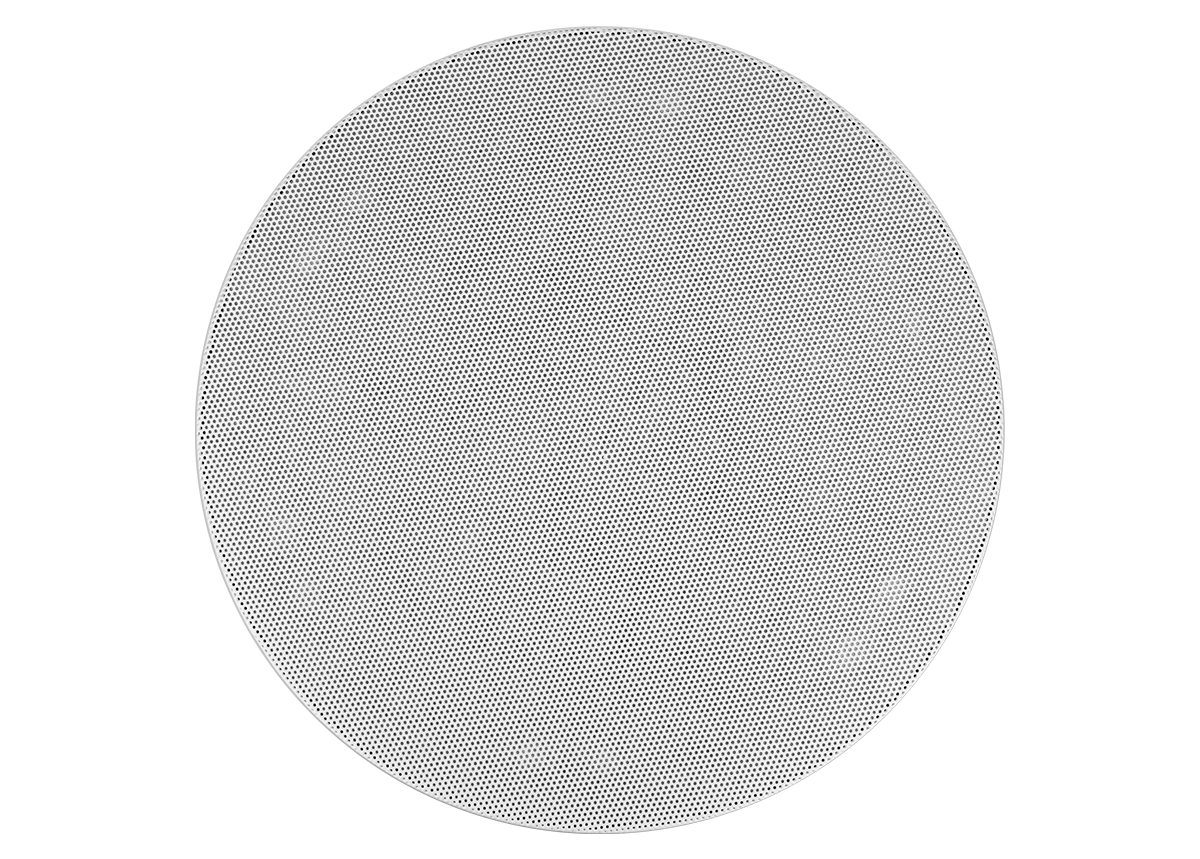

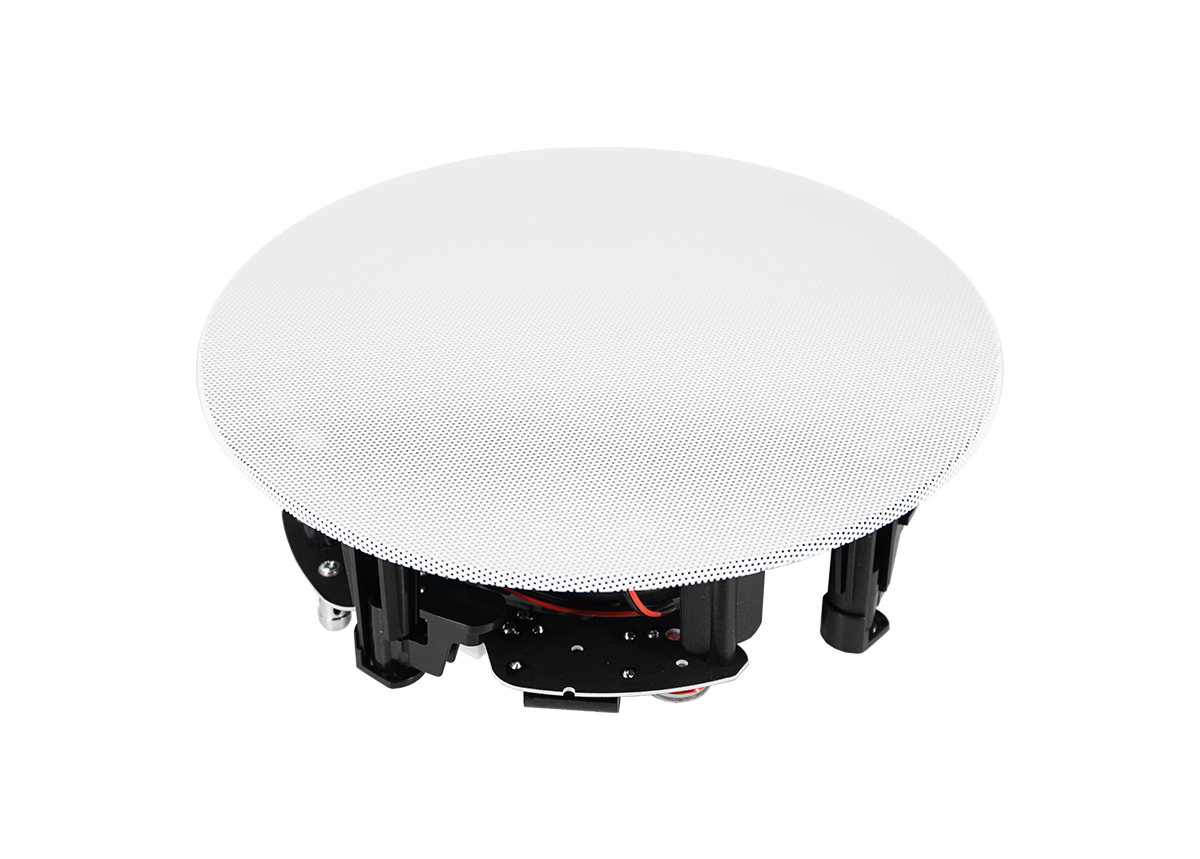

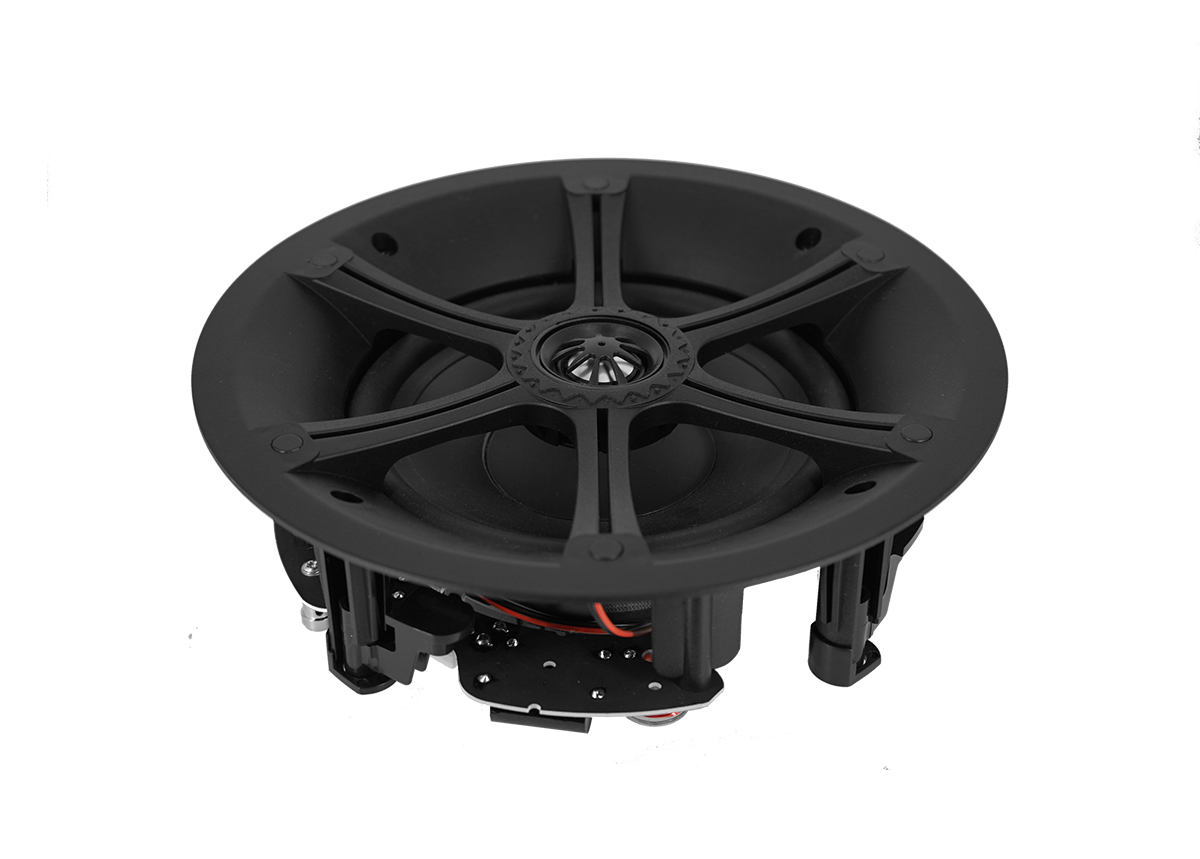

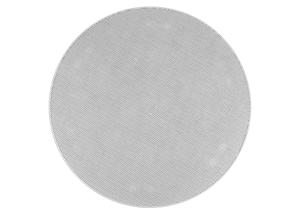

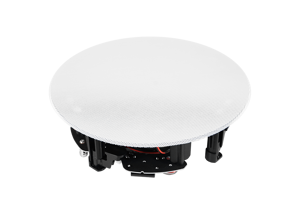

Pivoting Aluminum Dome Tweeter provide bright sound. The micro flange grilles are attached by extremely powerful magnets that stay put for quick and easy installation. Adds less visual impact on your architectural audio installation.
Technical Parameter
| Model | NL52 | NL62 | NL82 |
| Woofer | 5-1/4" PP cone | 6-1/2" PP cone | 8" PP cone |
| Tweeter | 3/4" Ferrofluid cooled aluminum dome | 3/4" Ferrofluid cooled aluminum dome | 1" Ferrofluid cooled aluminum dome |
| Power handling | 80Watts | 100Watts | 150Watts |
| Frequency response | 70-20,000Hz | 60-20,000Hz | 50-20,000Hz |
| Sensitivity | 87dB@1W/1M | 87dB@1W/1M | 88dB@1W/1M |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms |
| Dimension(DiaxD) | 195*95mm | 225*105mm | 265*112mm |
| Cutout size(Dia) | 180mm | 200mm | 245mm |
| Housing | ABS with metal grille | ABS with metal grille | ABS with metal grille |
