NW62/NW82
With best-of-class design and high-performance components,these in-wall speakers provide incomparable sound quality. New micro-trim grille gives the speakers a clean, elegant appearance that seamlessly integrates into any designed space.
±/3DB SWITCH

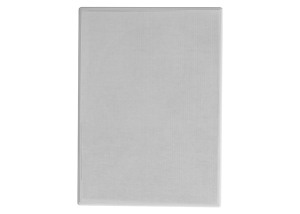

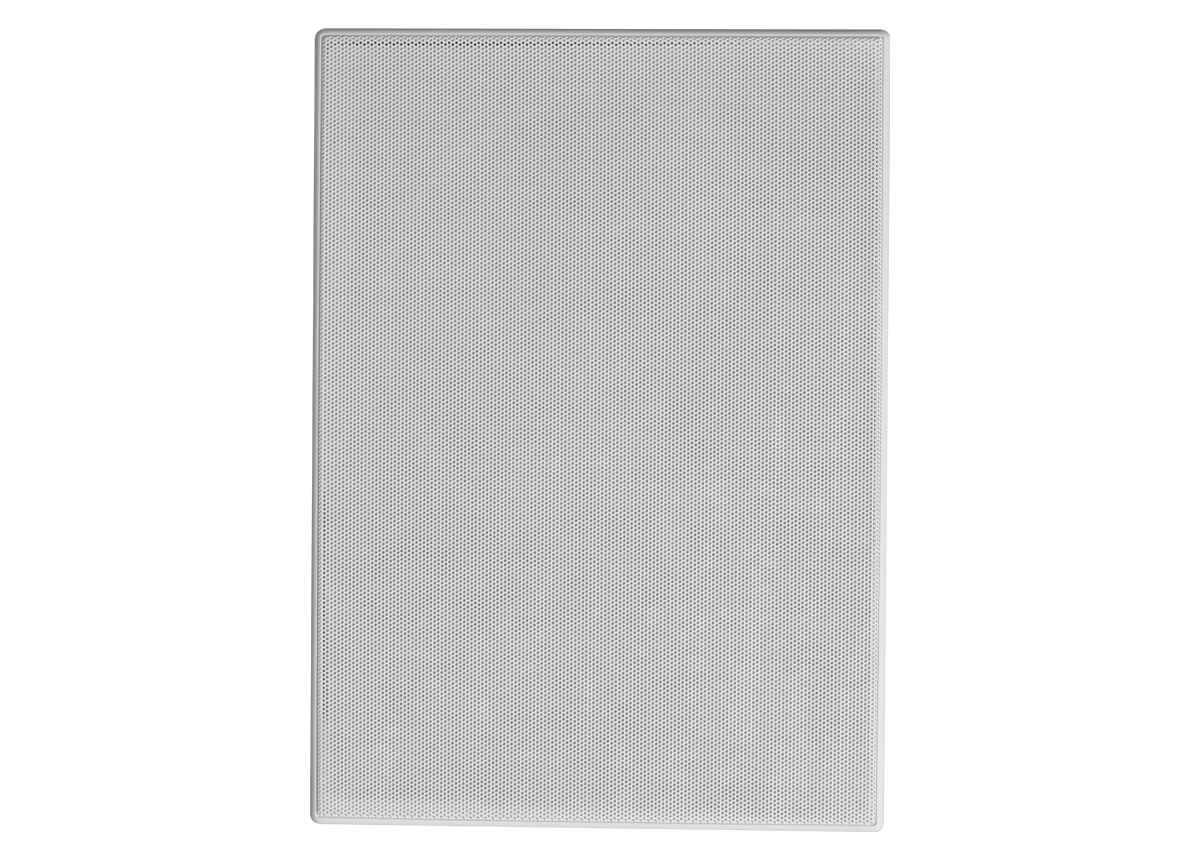

MAGNETIC GRILLE
GREAT PERFORMANCE
Technical Parameter
| Model | NW62 | NW82 |
| Woofer | 6-1/2" polypropylene or kevlar | 8" polypropylene or kevlar |
| Tweeter | 1" ferrofluid cooled silk dome ±3dB treble switch | 1" ferrofluid cooled silk dome ±3dB treble switch |
| Power handling | 120Watts | 150Watts |
| Frequency response | 50-20,000Hz | 30-20,000Hz |
| Sensitivity | 87dB@1W/1M | 87dB@1W/1M |
| Impedance | 8 Ohms | 8 Ohms |
| Dimension(DiaxD) | 203x287x85mm/8-11-5/16"x3-3/8" | 262x355x91.5mm/10-5/16"x14"x3-5/8" |
| Cutout size(Dia) | 264x180mm/10-3/8"x7*1/16" | 240x332mm/9-1/2"x13" |
| Mounting depth | 82mm/3-1/4" | 88mm/3-1/2" |
