NLCR525
With traditional dual-woofer/single-tweeter, this in-wall LCR speaker brings consistent dynamic acoustic performance whether it's installed horizontally as a central channel speaker or vertically as a left or rightchannel speaker.

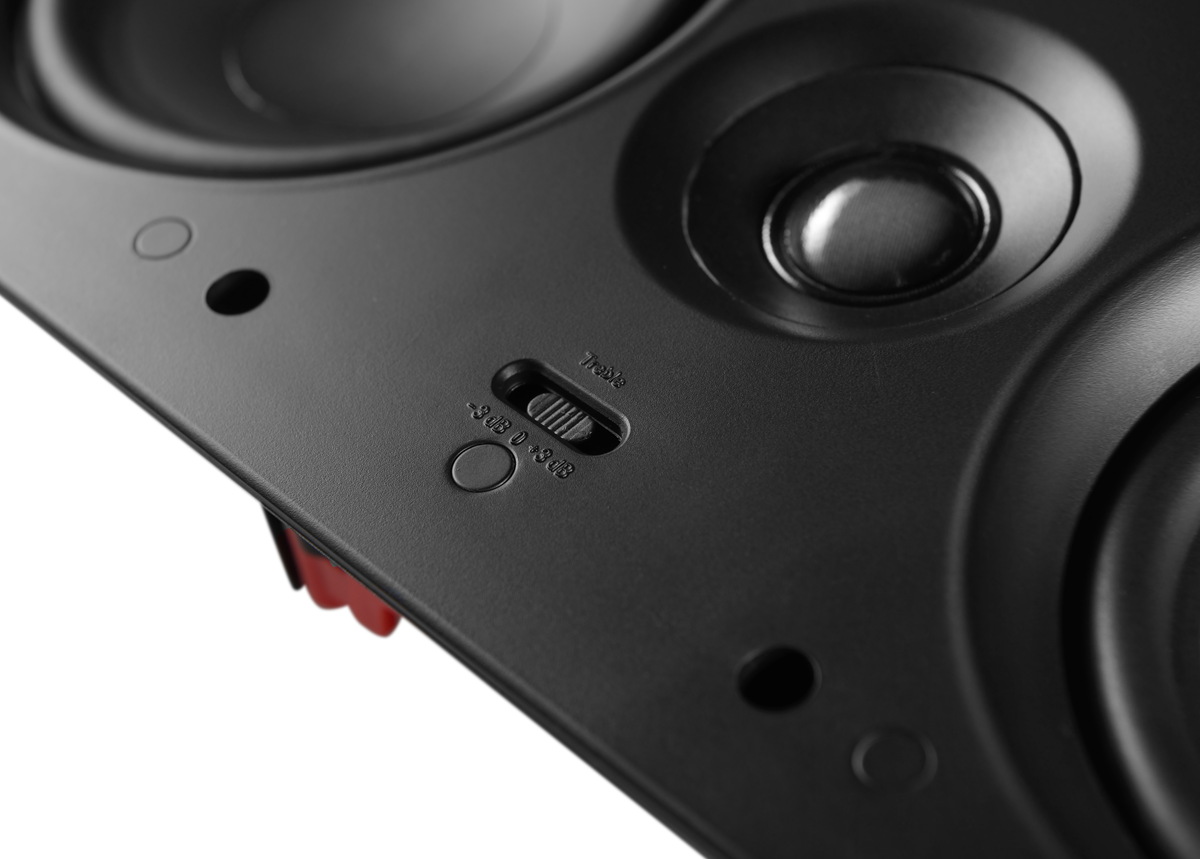

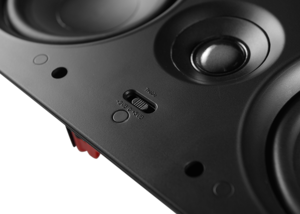

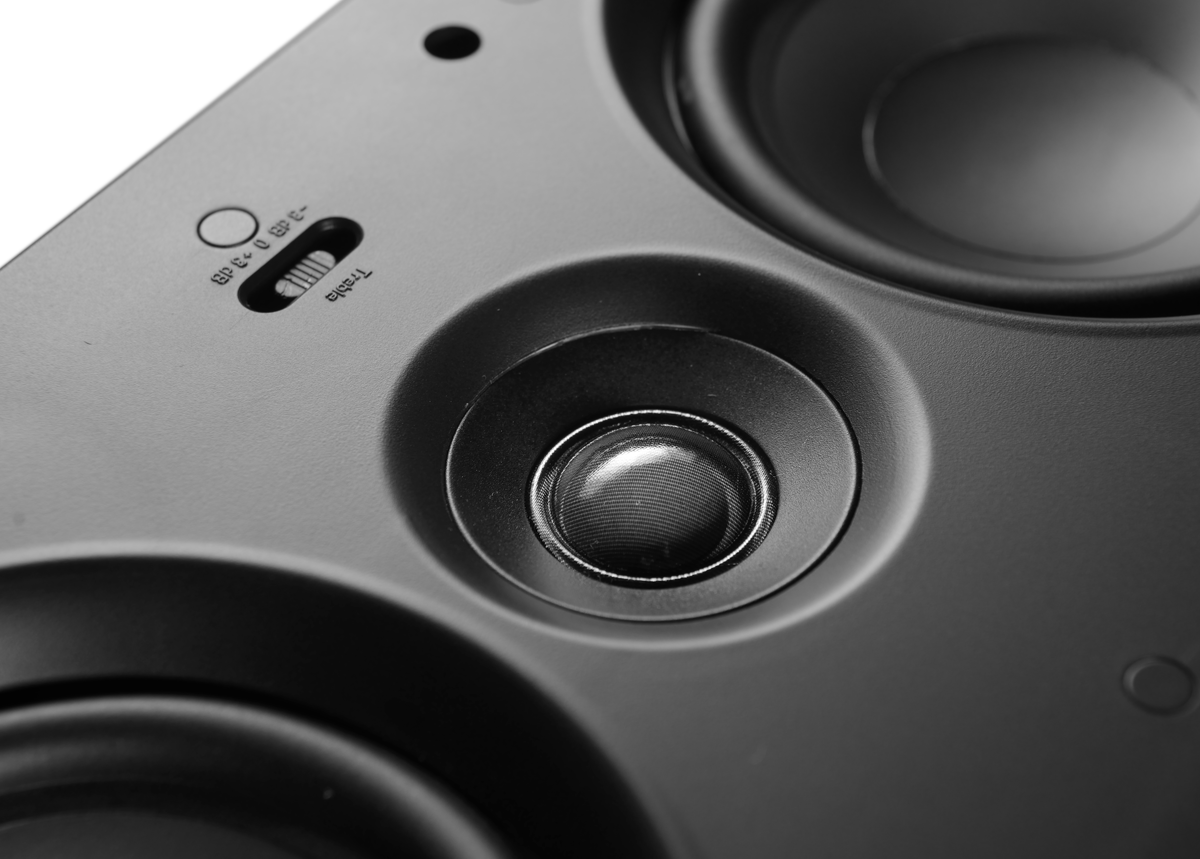

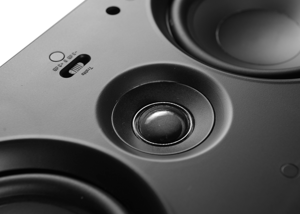

±/3DB SWITCH

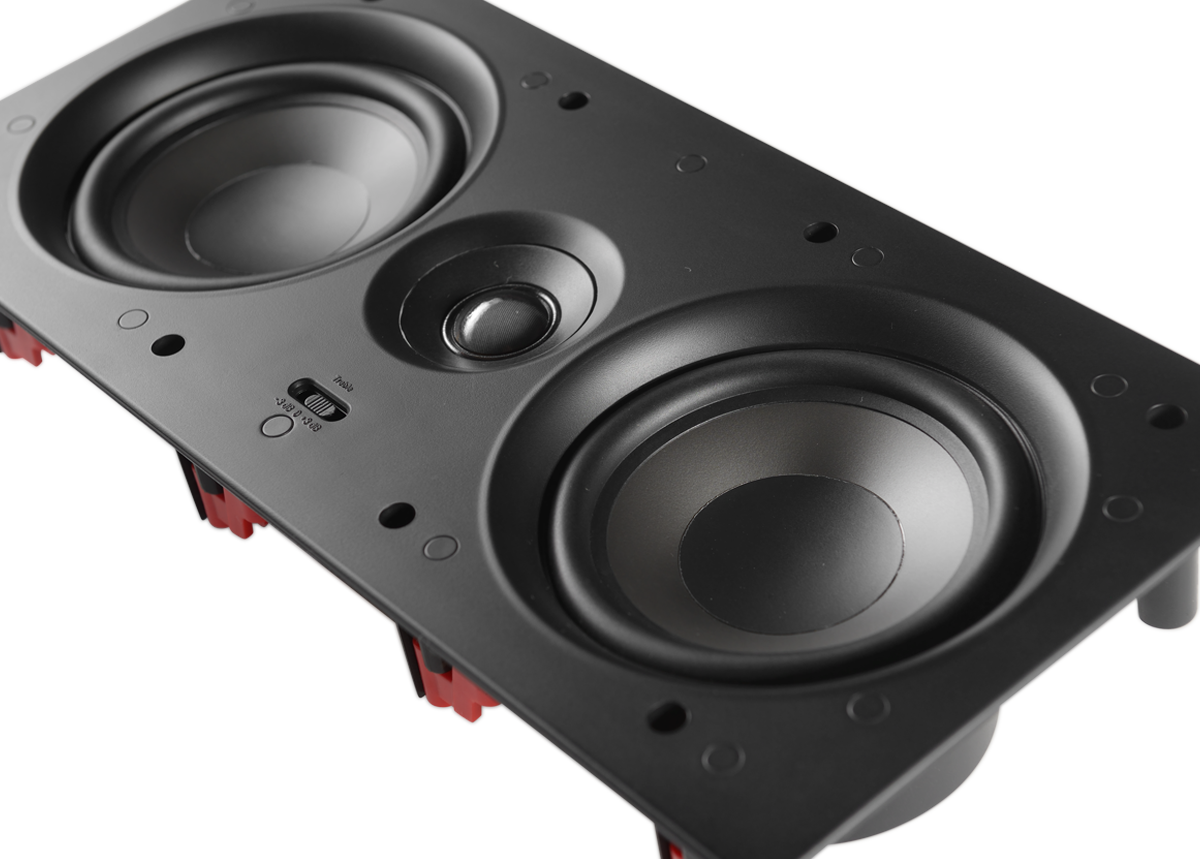

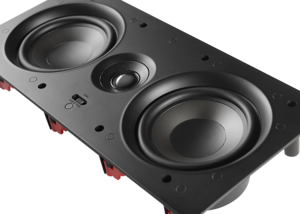

DUAL WOOFERS

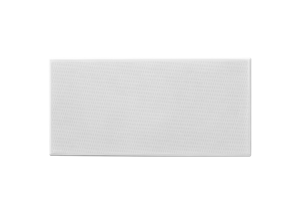

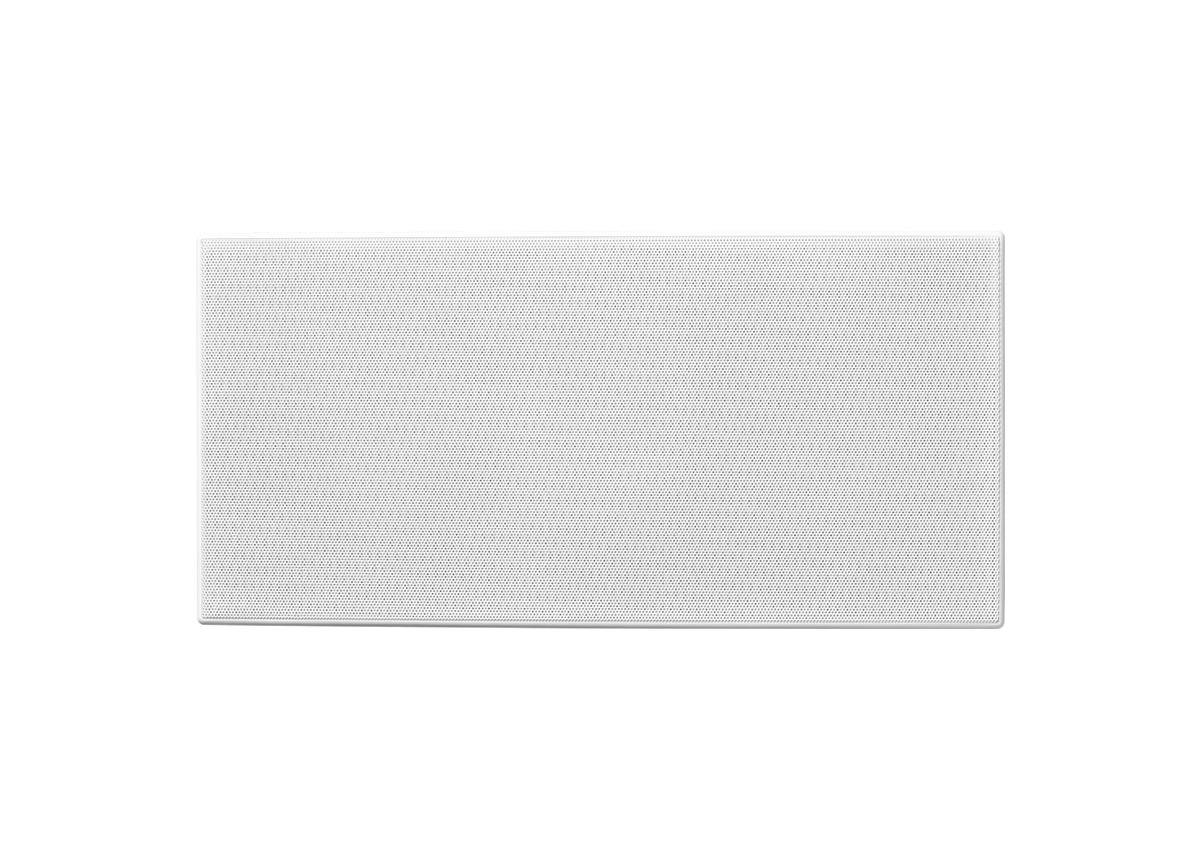

MAGNETIC GRILLE
Technical Parameter
| Model | NLCR525 |
| Woofer | dual 5-1/4" polypropylene or kevlar |
| Tweeter | 1" ferrofluid cooled silk dome ±3dB treble switch |
| Power handling | 100Watts |
| Frequency response | 60-20,000Hz |
| Sensitivity | 88dB@1W/1M |
| Impedance | 8 Ohms |
| Dimension(DiaxD) | 389x181x75mm/15-5/16"x7-1/8"x2*15/16" |
| Cutout size(Dia) | 365x157mm/14-3/8"x6-3/16" |
| Mounting depth | 72mm/2-13/16" |
